How Do You Choose the Right Tan Delta Tester for Your System?
Learn how to choose the right Tan Delta tester for your system. Explore key factors like voltage capacity, accuracy, measurement range, and field vs. lab testing needs.
Selecting the right Tan Delta tester for your transformer or cable system is crucial to ensure accurate measurements and reliable data for maintenance decisions. Factors such as phase output, current and voltage capacity, accuracy, measurement range, and the need for field versus lab testing should all be considered when making your choice.
What Are the Key Factors to Consider for Phase Output, Current, and Voltage Capacity?

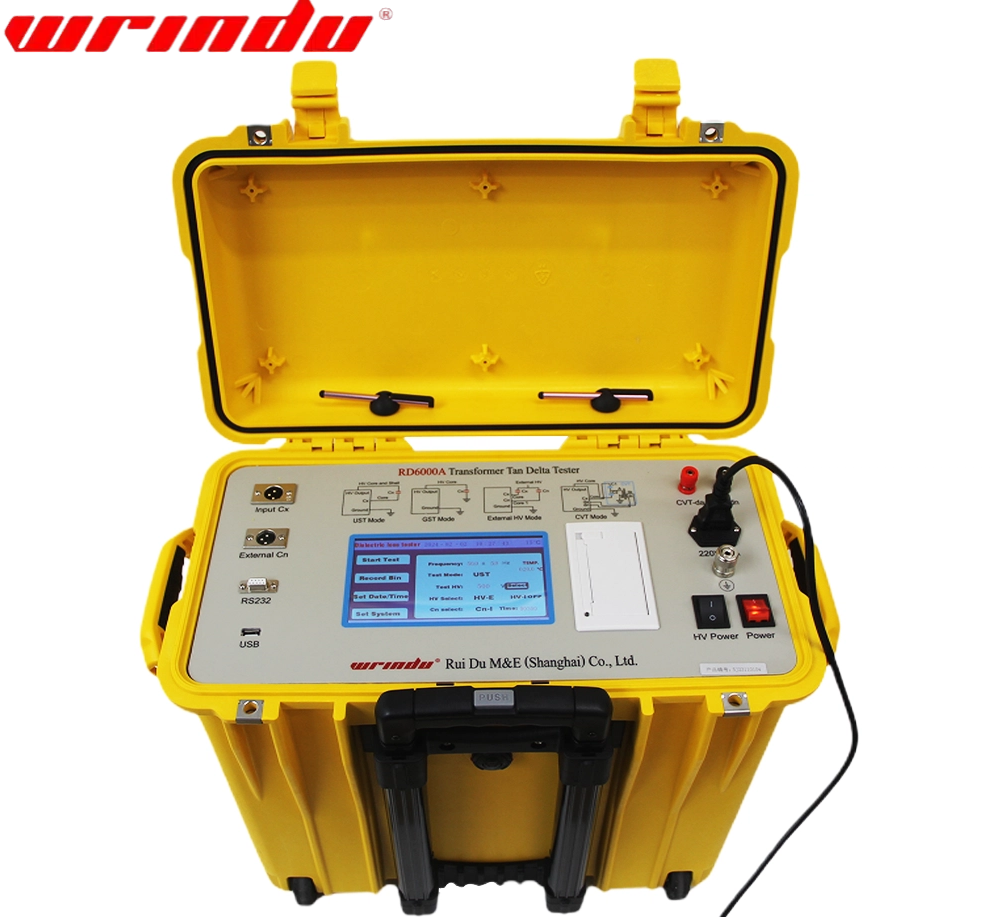

When choosing a Tan Delta tester, it’s essential to assess the phase output, current, and voltage capacity to match the needs of your system. The Wrindu Tan Delta Tester RD6000A offers adjustable output voltages ranging from 100V to 10kV, with a current range of 10μA to 5A. These capabilities allow it to handle a wide range of transformer and cable sizes, ensuring it can be used for both low and high-voltage systems. Additionally, the tester is equipped with automatic dual variable frequency settings, enabling accurate testing across different frequencies from 40Hz to 70Hz.
How Important Are Accuracy and Measurement Range?
Accuracy is a critical factor in Tan Delta testing, as small deviations in measurement can lead to incorrect conclusions about the health of the insulation. The Wrindu Tan Delta Tester RD6000A offers a high level of precision, with capacitance measurements accurate to ±(reading×1%+1pF) and Tan Delta measurements accurate to ±(reading×1%+0.00040). This high accuracy ensures reliable results even in environments with electromagnetic interference. Additionally, its measurement range covers dielectric losses from 3pF to 60μF, making it suitable for a wide variety of transformer and cable sizes.
Should You Choose a Field or Lab Testing Solution?
The decision between a field or lab testing solution depends on your testing environment and needs. Field testing requires portability and the ability to handle external electrical interference, such as from nearby equipment or power lines. The Wrindu Tan Delta Tester RD6000A is designed with advanced frequency conversion technology, enabling it to effectively eliminate 50Hz power frequency interference, even in environments with strong electromagnetic interference. This makes it ideal for on-site field testing. However, if your testing needs are more controlled, a lab-based solution may be better suited for precise, repeatable measurements in a stable environment.
What Additional Features Should You Consider?
Consider the additional safety and protection features when selecting a Tan Delta tester. The Wrindu Tan Delta Tester RD6000A is equipped with several built-in protections, including grounding protection, overcurrent protection, and electric shock protection, ensuring safety during testing. It also includes a mini-type thermal printer for easy documentation of test results and interfaces such as RS232 and USB for seamless data transfer and integration with other systems.
Common Questions from Wrindu Technicians
Q: Can the Wrindu Tan Delta Tester handle high-voltage testing?
Yes, the Wrindu Tan Delta Tester RD6000A supports testing up to 10kV, making it suitable for high-voltage systems.
Q: What makes Wrindu Tan Delta Testers suitable for field testing?
Wrindu’s testers, like the RD6000A, are designed to withstand strong electromagnetic interference and offer features like frequency conversion to ensure accurate results in field environments.
Q: How does the accuracy of the Wrindu Tan Delta Tester compare to other models?
The RD6000A offers excellent accuracy, with capacitance measurements accurate to ±(reading×1%+1pF) and Tan Delta readings accurate to ±(reading×1%+0.00040), making it a reliable choice for critical measurements.
Choosing the right Tan Delta tester for your system requires a balance of several factors, including voltage and current capacity, measurement accuracy, and the environment in which you’ll be testing. The Wrindu Tan Delta Tester RD6000A is an excellent choice for both field and lab testing, offering high accuracy, robust features, and built-in safety protections for reliable results.
