Optimizing VLF (Very Low Frequency) testing is essential for achieving accurate diagnostics, stable operation, and reliable high-voltage cable assessment. While basic VLF testing confirms insulation condition, optimization ensures you get the highest possible data quality with minimal errors and downtime.

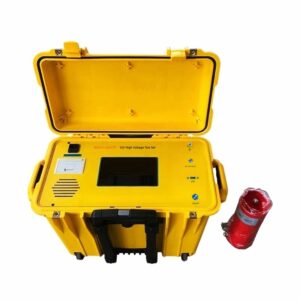

Click the image to know more about Wrindu 60kV VLF Integrated Tester.
This guide explains the key strategies to optimize VLF testing and how advanced equipment like Wrindu testers improves overall performance.
Why VLF Testing Optimization Matters
Without proper optimization, VLF testing may lead to:
- Unstable voltage output
- Inaccurate tan delta results
- False partial discharge readings
- Tester overload or shutdown
- Reduced equipment lifespan
Optimized testing helps ensure:
- Reliable results
- Faster testing cycles
- Better fault detection
- Improved safety
Key Strategies to Optimize VLF Testing
1. Select the Correct Frequency for the Cable
Frequency selection directly impacts test stability.
- Long, high-capacitance cables → lower frequency (0.01 Hz)
- Medium cables → 0.05 Hz
- Short cables → 0.1 Hz
Incorrect frequency selection is one of the most common causes of test failure.
2. Ensure Proper Grounding Before Every Test
Grounding is critical for measurement accuracy.
- Use a dedicated grounding point
- Keep grounding cables short
- Avoid shared or unstable grounding systems
Poor grounding introduces noise and measurement distortion.
3. Match Load Capacity with Tester Capability
Every VLF tester has a maximum load capacity.
- Overloading causes shutdown
- Underloading may reduce measurement sensitivity
- Always calculate cable capacitance before testing
4. Maintain Stable Environmental Conditions
Environmental factors significantly affect results:
- Avoid high humidity (>85%)
- Prevent direct exposure to sunlight or rain
- Ensure stable ambient temperature
5. Use Multi-Parameter Testing Approach
Do not rely on a single test type.
Combine:
- VLF hipot test
- Tan delta measurement
- Partial discharge (PD) detection
This provides a complete insulation profile.
6. Regular Calibration and Equipment Checks
Calibration ensures long-term accuracy.
- Recommended: once per year
- Check cables and connectors before each test
- Verify system response periodically
7. Analyze Data Trends Instead of Single Results
Optimization is not just about testing—it’s about interpretation.
- Compare historical tan delta values
- Track PD changes over time
- Identify gradual insulation degradation
How Wrindu Testers Stand Out
Wrindu VLF testers are designed to make optimization easier, more accurate, and more consistent in real field conditions.
1. Intelligent Load Matching System
Wrindu testers automatically adjust to cable capacitance, helping to:
- Prevent overload conditions
- Optimize frequency selection
- Maintain stable output
2. High Frequency Stability Performance
With frequency stability ≤ 0.5%, Wrindu ensures:
- Consistent voltage output
- Reliable measurement accuracy
- Reduced test fluctuations
3. Integrated Multi-Test Platform
Wrindu combines multiple diagnostic functions:
- VLF hipot testing
- Tan delta measurement
- Partial discharge detection
This eliminates the need for multiple devices.
4. Real-Time Diagnostic Feedback
Wrindu systems provide:
- Overload warnings
- Frequency fluctuation alerts
- Smart troubleshooting prompts
This reduces human error during optimization.
5. Field-Ready Durability
Wrindu testers are built for real-world conditions:
- Strong anti-interference capability
- Wide temperature range operation
- Reliable performance in harsh environments
Benefits of Optimized VLF Testing
When properly optimized, VLF testing delivers:
- Higher diagnostic accuracy
- Reduced equipment stress
- Faster field operations
- Improved maintenance planning
- Lower long-term costs
FAQs (Long-Tail Q&A)
Q1: What is the most important factor in VLF testing optimization?
A: Frequency selection is the most critical factor because it directly affects load stability and measurement accuracy.
Q2: How does poor grounding affect VLF test results?
A: Poor grounding introduces noise and interference, leading to inaccurate tan delta and PD readings.
Q3: Why does my VLF tester shut down during testing?
A: It is usually caused by overload, incorrect frequency selection, or unstable environmental conditions.
Q4: Can I use the same frequency for all cable types?
A: No. Different cable lengths and capacitances require different frequencies to ensure stable testing.
Q5: How often should VLF testers be calibrated?
A: Typically once per year, or more frequently for heavily used field equipment.
Q6: How do Wrindu testers help optimize VLF testing?
A: Wrindu testers use intelligent load matching, stable frequency control, and real-time diagnostics to reduce errors and simplify optimization.
Q7: What is the biggest mistake in VLF testing optimization?
A: Relying only on default settings instead of adjusting frequency, load, and grounding based on actual field conditions.
Final Thoughts
Optimizing VLF testing is essential for achieving accurate, stable, and reliable cable diagnostics.
By applying proper frequency selection, grounding practices, and multi-parameter analysis—and using advanced tools like Wrindu VLF testers—you can significantly improve testing efficiency and ensure long-term asset reliability.
