What is Oil Testing Equipment and Why is It Important?
Oil testing equipment is essential for assessing transformer oil quality, preventing failures, and ensuring efficiency. Learn about common tools, testing frequency, and benefits.
Oil testing equipment is essential for assessing the quality and condition of transformer oils used in electrical transformers and other high-voltage equipment. Transformer oil is both an insulator and a cooling medium, playing a critical role in maintaining the efficiency and safety of electrical equipment. Over time, this oil can degrade due to exposure to electrical and mechanical stresses. Regular testing helps ensure that the oil remains effective in its functions, reducing the risk of transformer failures.
Why is Oil Testing Equipment Important?
Oil testing equipment measures several vital properties of transformer oil, including dielectric strength, acidity, water content, and more. These tests help identify problems that could lead to equipment failure or safety risks. For example, elevated water content can weaken the oil’s insulating properties, while increased acidity can damage transformer components. Testing also detects harmful gases dissolved in the oil, such as methane, which can indicate overheating or internal damage.
How Does Oil Testing Work?
The process of testing transformer oil typically involves collecting a sample and analyzing it for various properties. Dielectric strength is one of the most important measures, as it indicates how well the oil can withstand electrical stress. Other tests, such as measuring the water content, help identify contaminants that could damage the transformer’s insulating properties. These tests are often performed using specialized equipment, including dielectric strength testers, water content testers, and gas chromatography testers.
What Are the Common Types of Oil Testing Equipment?
| Type of Oil Testing Equipment | Purpose |
|---|---|

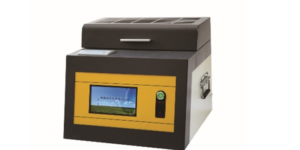

| Dielectric Strength Testers | Measure the oil’s ability to withstand electrical stress. |
| Micro Water Tester | Assess the amount of water in the oil, which can degrade insulation properties. |
| Acid Number Tester | Determine the acidity of the oil, which can affect its performance over time. |
| Gas Chromatography Testers | Detect gases dissolved in the oil that may indicate overheating or other issues. |
| Interface Tension Tester | Determine the oil’s ability to resist external forces, impacting its performance as an insulating and cooling medium in transformers. |
| Portable DGA Tester | Analyze dissolved gases in oil, especially for field testing. |
How Often Should Transformer Oil Be Tested?
Experts recommend testing transformer oil every 6 to 12 months, depending on the transformer’s usage and operating conditions. Regular testing helps identify potential problems before they lead to expensive repairs or failures, ultimately extending the life of the transformer.
FAQs
What is the main purpose of oil testing?
Oil testing identifies contaminants (such as water, dirt, or fuel), detects abnormalities, and reveals signs of poor engine or equipment health. This allows for early intervention, preventing costly equipment failure and downtime.
How do you take a proper oil sample?
To obtain accurate and representative results, use a vacuum pump or sampling valve while the machine is at its normal operating temperature. Samples should be taken upstream of filters and downstream of components to ensure the oil being tested reflects actual machine conditions.
What does a “yellow” or “red” light on a portable tester mean?
-
Green light: The oil is healthy and does not require attention.
-
Yellow light: Indicates potential degradation or contamination; you should monitor the oil closely.
-
Red light: Signifies that the oil is in poor condition and needs to be replaced immediately to prevent damage or failure.
How long does lab testing typically take?
Once a sample reaches the lab, results are typically available within 24 to 48 hours. However, factoring in shipping time, the total process may take around 3 to 7 days.
Is oil analysis worth it for personal vehicles?
Yes, oil analysis helps assess engine efficiency and determine if the oil is degrading faster than expected. It allows car owners to avoid unnecessary oil changes and identify potential issues early, saving on long-term maintenance costs.
Why is “trending” results important?
By comparing current oil test data with historical results, you can spot developing issues or new problems. This helps track the health of the machine over time, allowing for more informed maintenance decisions.
How often should critical industrial machinery be tested?
The frequency of testing depends on the criticality of the machinery. For high-risk equipment or those with no backup, testing should be more frequent. Other factors like safety risks, historical failure rates, and environmental conditions also influence the testing schedule.
What is the difference between On-site and Laboratory testing?
-
On-site (Portable) testing: Provides quick results, allowing for rapid decision-making. However, it is typically less precise and offers a limited range of tests.
-
Laboratory (Off-site) testing: Offers higher accuracy, advanced diagnostics, and expert interpretation, but may have a longer turnaround time due to shipping.
Is used engine oil considered a “hazardous material” for shipping?
No, used engine oil is not classified as a hazardous material for shipping, as long as it has a flash point above 200°F (typical used engine oil has a flash point around 380°F) and is properly contained in leak-proof, screw-on containers.
What are “Acid Number” (AN) and “Base Number” (BN) tests?
-
Acid Number (AN): Measures the amount of acidic buildup in the oil. A rising AN indicates oil oxidation and the potential for corrosion.
-
Base Number (BN): Measures the oil’s reserve alkalinity, or its ability to neutralize acids. A falling BN indicates that the oil is losing its protective qualities and may no longer effectively neutralize acids.
Why is “Particle Counting” vital for hydraulic systems?
In hydraulic systems with tight tolerances, such as servo valves, even microscopic particles can cause significant wear. Particle counting helps quantify the level of contamination in the oil, using ISO 4406:99 standards to assess cleanliness and filter efficiency.
Are there new standards for sampling in 2025?
Yes, new standards like ISO 3170:2025 specify manual sampling methods for liquid hydrocarbons. These methods help ensure that oil samples are truly representative and minimize the loss of volatile components, improving the reliability of test results.
